Stainless Steel Kf Flange Fittings Kf Flange Weld Stub with Short and Long

Name: Stainless Steel Kf Flange Fittings Kf Flange Weld Stub with Short and Long
Brand: NYHAU
Price: 1 USD

Brand Name : NYHAU

Certification : 3A,CE,ISO,FDA

Place of Origin : KunShan,China

MOQ : 1PC

Price : Negotiable

Payment Terms : L/C, D/P, D/A, T/T, Western Union, MoneyGram

Supply Ability : 10000PCS/Mouth

Delivery Time : 5-8 work days

Packaging Details : Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)

Material : Stainless Steel

Type : Welding Flange

Standard : ANSI, DIN, GB, JIS

Structure : Round

Connection : Flanged

Sealing Surface : RF

Contact Now

Stainless Steel Kf Flange Fittings Kf Flange Weld Stub with Short and Long

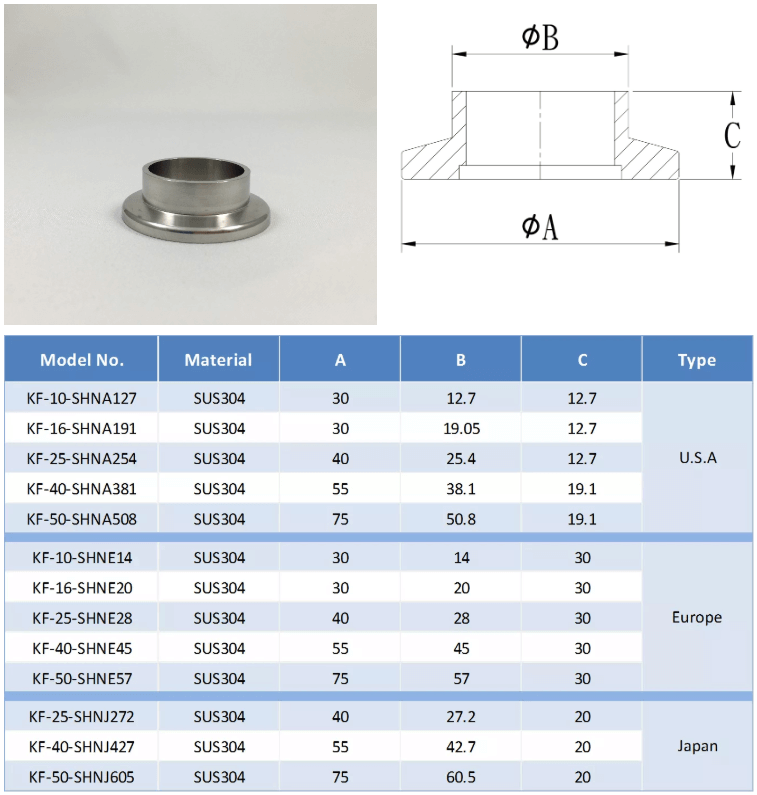

Product Name	KF 10-50 Half Nipple Long Flange
Material	stainless steel
Standard	ISO 9001:2015
Grade	SUS304L, SUS316L
Use	Vacuum

Product Name	KF 10-50 Half Nipple short Flange
Material	stainless steel
Standard	ISO 9001:2015
Grade	SUS304L, SUS316L
Use	Vacuum

Applications

ISO-KF fittings can be used in a wide variety of applications including:

• Roughing and foreline plumbing

• Small systems

• Systems requiring frequent cleaning or modification

• Research and teaching laboratories ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Material and Size

• Flanges, Blanks, Fittings: Stainless Steel 304 or 316L
• Clamps: Aluminum or Stainless Steel 304
• Oring: Viton

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

Stainless Steel Kf Flange Fittings Kf Flange Weld Stub with Short and Long
